CURTAIN WALL ZERO SIGHTLINE SASH SYSTEM
F50 SYSTEM

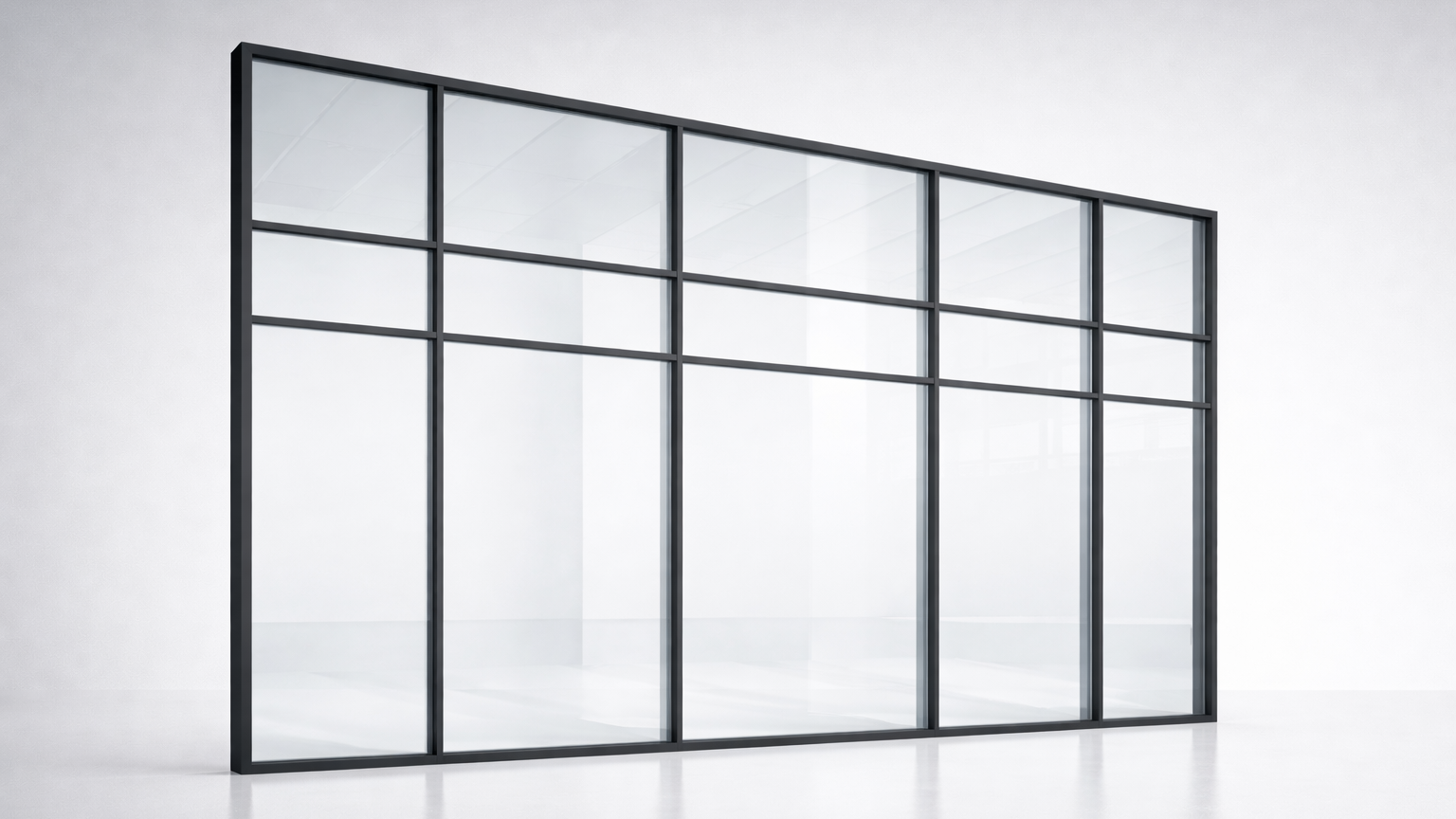

The F50 curtain wall system is a high-performance aluminum façade solution designed for modern architectural glazing. It allows architects and developers to create large glass façades with a minimal aluminum profile visible from the exterior.
The system provides excellent structural stability while maintaining a sleek and contemporary appearance. The F50 supports various glazing configurations and can be used for vertical façades, angled surfaces, and complex architectural envelopes.
The structural glazing technology conceals external fasteners, allowing the façade to appear as a continuous glass surface.
The F50 system is engineered for durability, weather resistance, and long-term performance in commercial and residential projects.
OPENING OPTIONS:

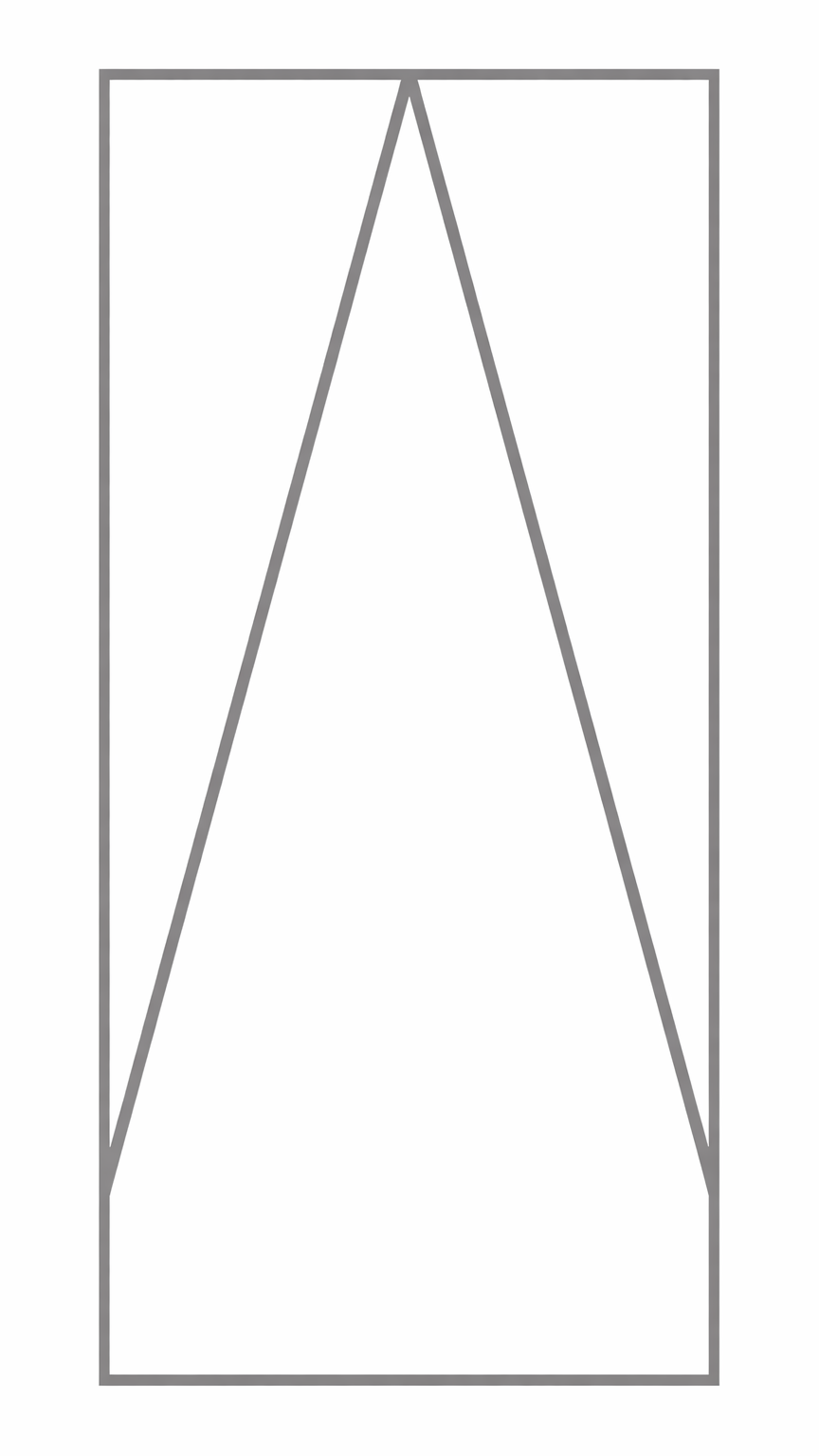

BOTTOM-HUNG VEN
designed for the F50 curtain wall system, opening inward from the top to provide controlled, secure ventilation. It integrates seamlessly into the façade, maintaining clean sightlines while helping prevent water from entering.

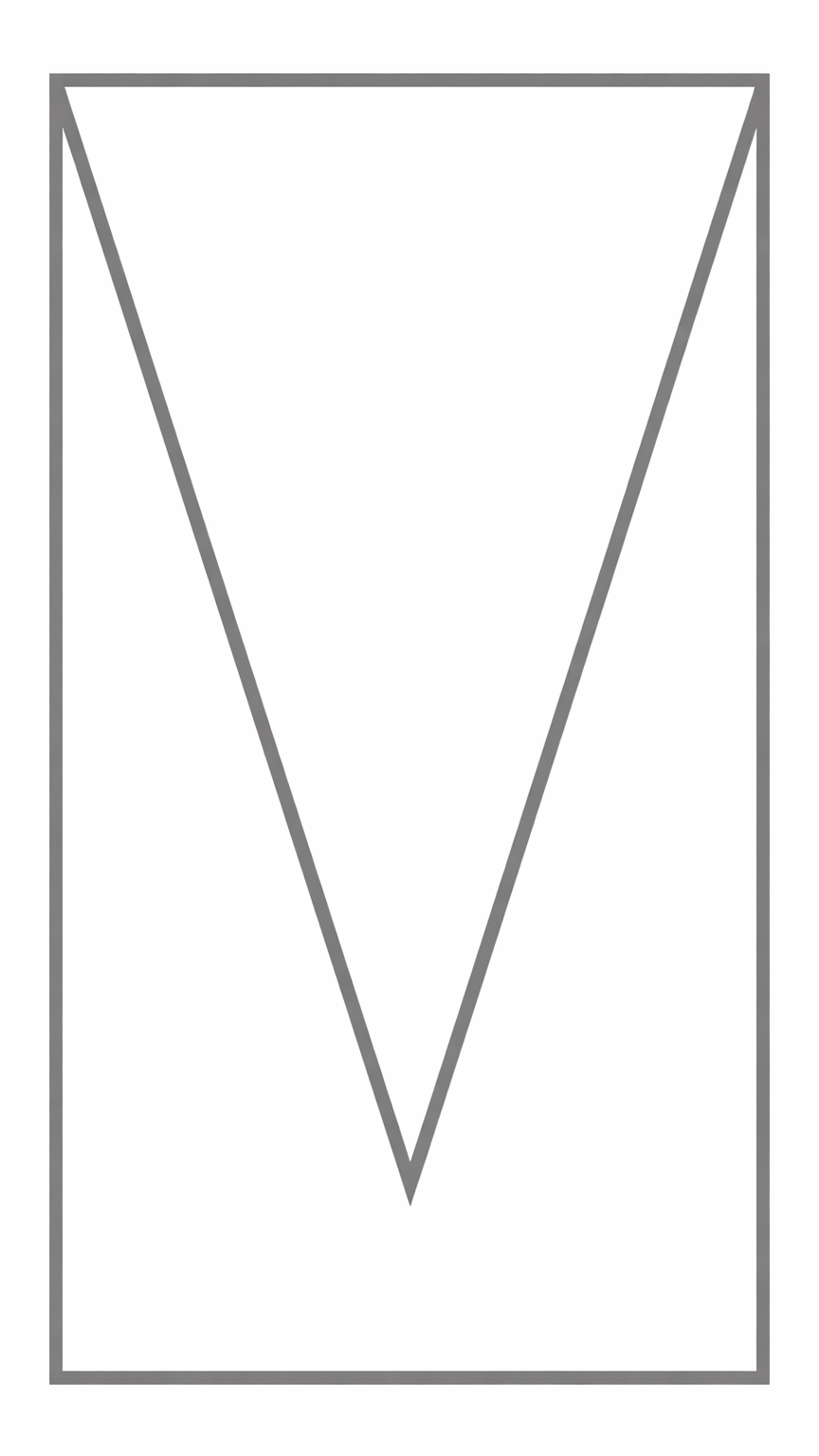

TOP-HUNG VENT
designed for the F50 curtain wall system, opening outward from the bottom to provide effective ventilation while maintaining clean façade lines and reliable weather performance.

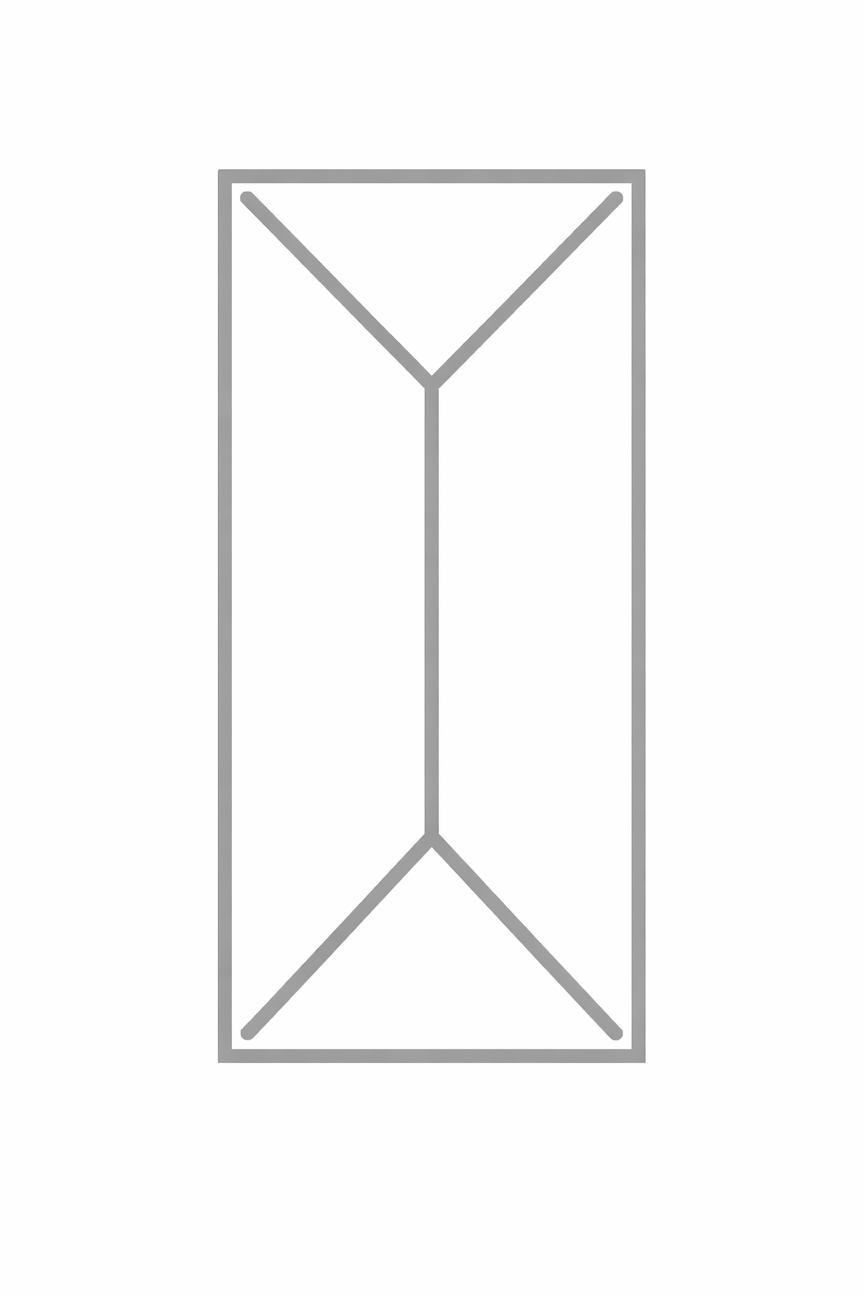

PARALLEL OPENING VENT
for the F50 curtain wall system that opens evenly outward, allowing balanced airflow while preserving a flush, modern façade appearance.
KEY FEATURES AND BENEFITS:
Clean Architectural Sightlines: Slim aluminum mullions create a clean architectural appearance while maximizing glass area and natural daylight throughout the building interior.

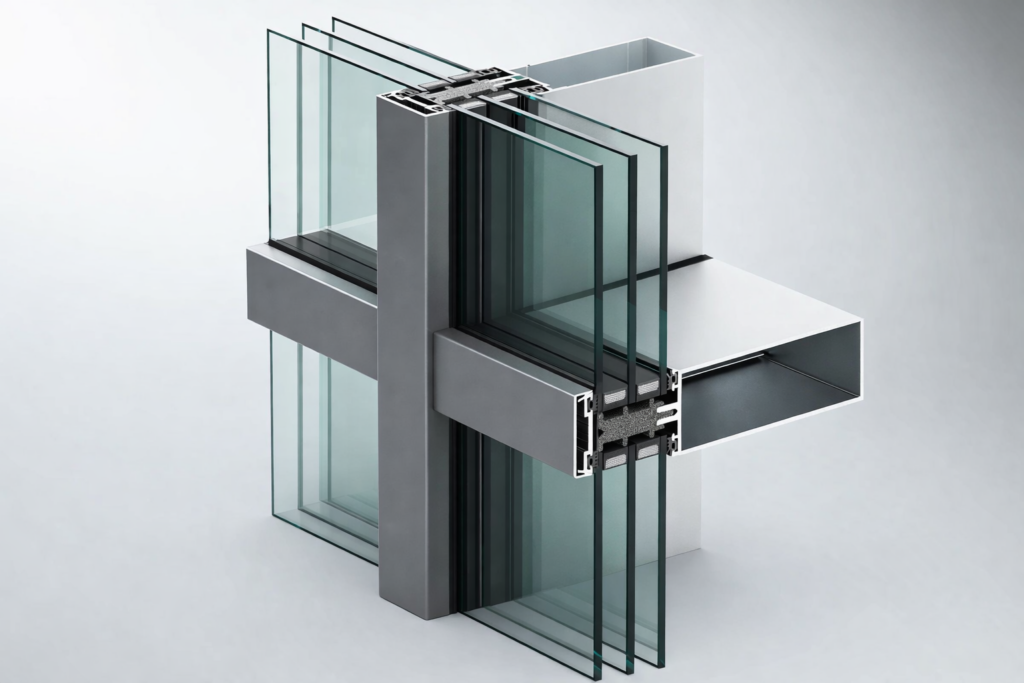

Structural Performance: Engineered aluminum framing provides high structural stability, allowing the system to support large glass panels and multi-story façade configurations.
Flexible Glazing Options: Compatible with insulated glass units, laminated glazing, and high-performance coatings to meet modern energy and design requirements.
Efficient Installation System: Modular aluminum components allow for streamlined fabrication and installation, improving project timelines and construction efficiency.
Weather & Air Protection: Advanced sealing technology protects against air infiltration and water penetration, ensuring reliable long-term façade performance.
Versatile Applications: Suitable for a wide range of façade designs including vertical curtain walls, corner glazing, and large commercial glass elevations.
Why Architects Choose Curtain Wall Systems
Modern Architectural Identity
Curtain wall systems create striking full-glass façades that define contemporary commercial buildings while maximizing daylight and visual transparency.
Engineered for Large-Scale Façades
Designed to support multi-story glazing applications with strong aluminum mullions and transoms that provide structural stability for large glass panels.
Energy-Efficient Building Envelopes
Compatible with insulated glass units, low-E coatings, and high-performance glazing options that improve thermal performance and building efficiency.
Seamless Integration with Modern Architecture
A sleek aluminum framing system that integrates naturally with contemporary office buildings, hotels, retail developments, and mixed-use architecture. Aluminum curtain wall systems are engineered for long-term performance, resisting weather exposure while maintaining structural integrity and visual appeal.
APPLICATIONS
Residential
- Office buildings
- Retail storefronts, shopping centers
- Retail storefronts, airports and transportation hubs
Commercial
- High-rise residential towers
- Luxury apartment buildings
- Modern private residences
- • Architectural glass façades
Typical system specifications (final values depend on configuration and project requirements):
| Infill unit thickness | 1” IGU and up to 2” |
| Sash width | up to 55” |
| Sash height | up to 79” |
| Sash weight | uup to 300 lbs |
| Thermal performance | U = 0.33 BTU/(hr×ft2 ×°F) |
| Acoustical performance | STC 37 OITC 30 |
| Integrated elements | All Avrams window and door systems, including integrated façade glazing and roof vent solutions |
Real Project: Louis Armstrong House Museum
Queens, New York
Engineered, fabricated, and installed by one team
FINISHES & COLOR OPTIONS:
Our aluminum louvre systems are available in a range of high-quality finishes designed to enhance both durability and architectural appearance.

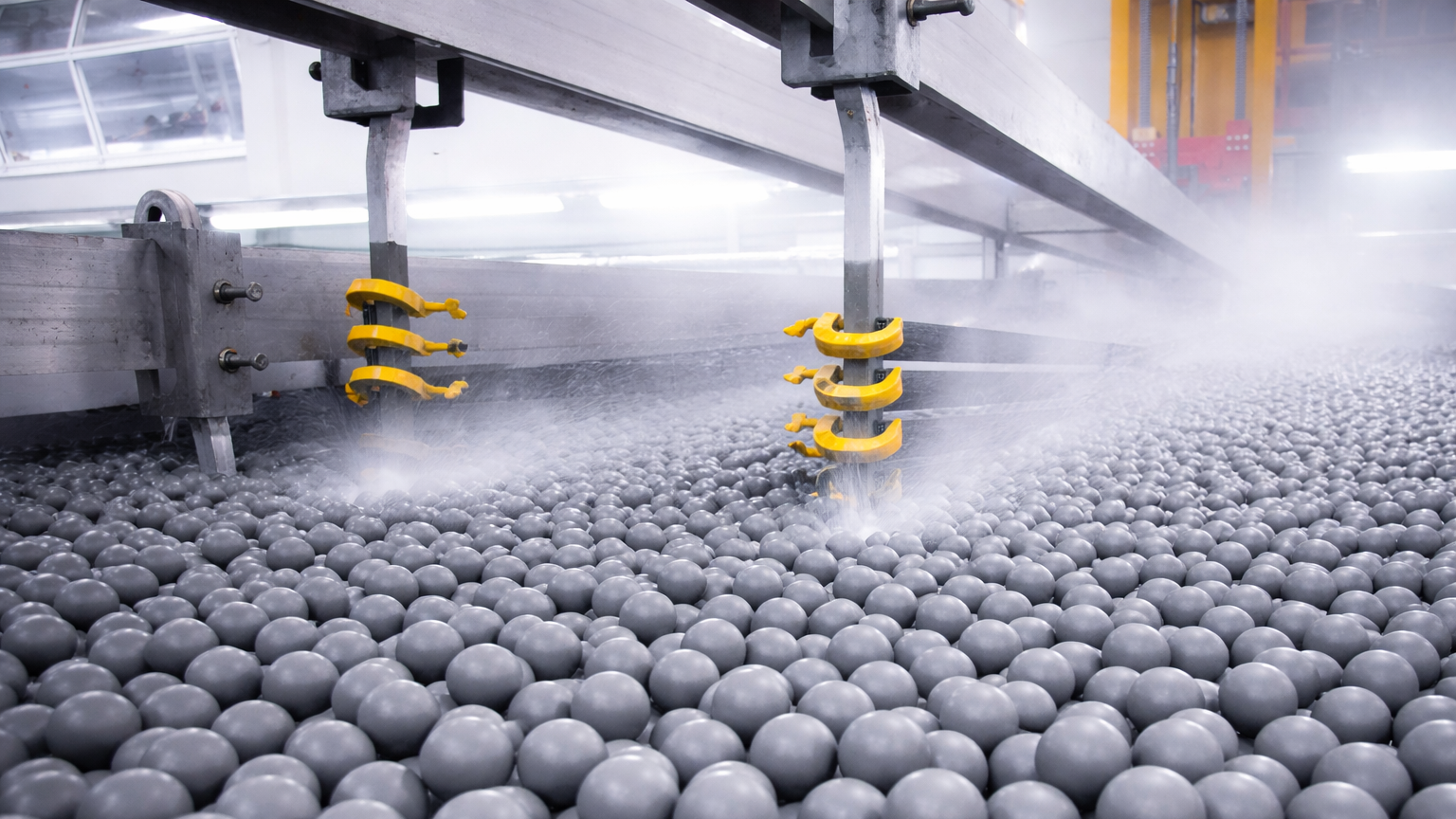

POWDER COATING
A versatile finishing solution offering a wide range of colors and surface textures to suit any architectural style.
- Exclusive collections including Futura, Precis, and Anodic
- Available in glossy, matte, and textured finishes
- Innovative BIO-coating with built-in antimicrobial protection
ANODIZED FINISH
A premium finishing process that enhances the natural appearance of aluminum while improving durability and surface performance.
- Available in a selection of standard color tones
- Optional surface treatments including chemical etching, bead blasting, and brushing
- Creates a uniform, metallic finish with refined texture

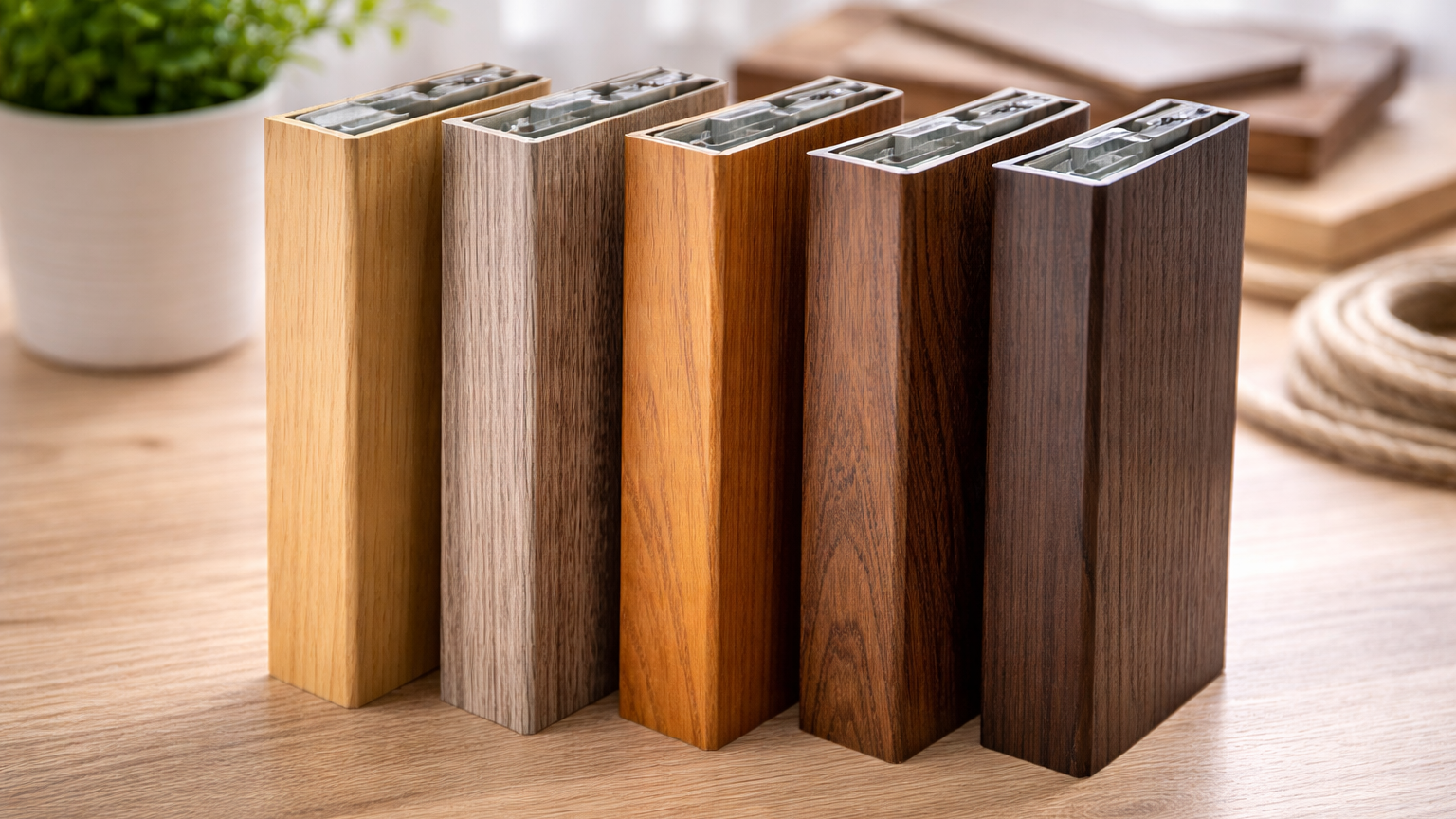

WOOD-GRAIN EFFECT
A decorative finish that replicates the natural look of wood while maintaining the strength and durability of aluminum.
- Available in a selection of woodgrain tones
- Realistic texture with natural wood appearance
- Durable, low-maintenance alternative to traditional wood
